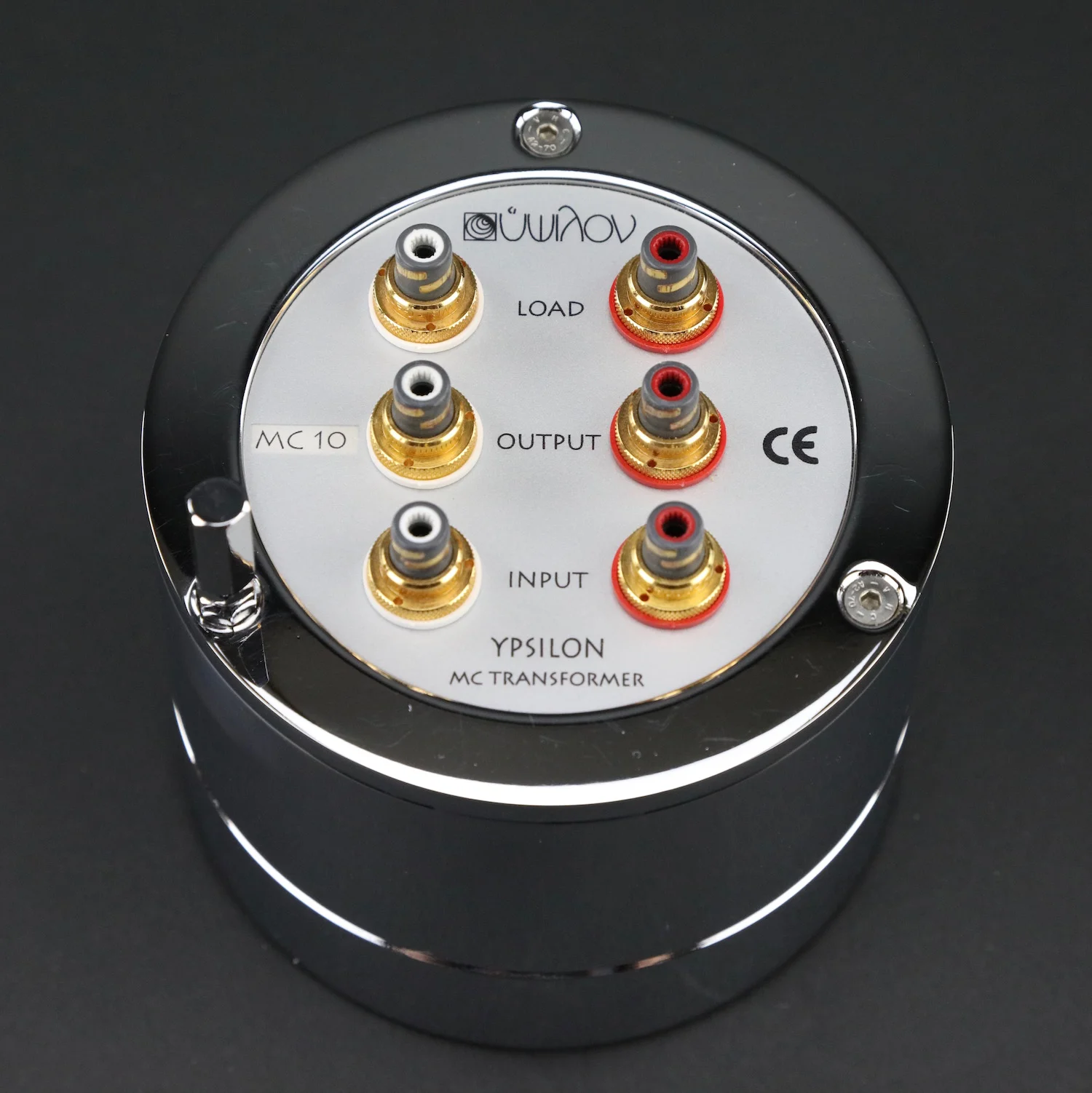

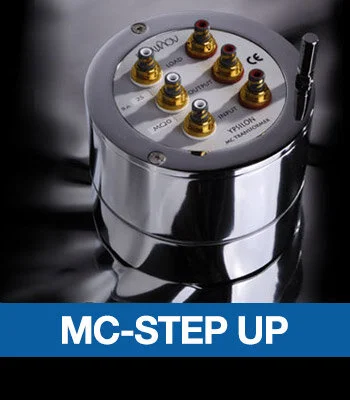

YPSILON MOVING COIL STEP UP TRANSFORMERS

The MC series moving coil step-up transformers are used to amplify the low level output signal from a moving coil cartridge bringing it to the appropriate level to drive a moving magnet phono preamp.

The MC5 provides 5 times transformation ratio or 14db of gain

The MC10 provides 10 times transformation ratio or 20db of gain.

The MC16 provides 16 times transformation ratio or 24db of gain.

The MC20 provides 20 times transformation ratio or 26db of gain.

When terminated in 47k which is the standard input impedance of MM phono preamps the equivalent input impedance of each one would be:

MC5 2K ohm

MC10 500 ohm

MC16 200 ohm

MC20 140 ohm

If additional loading is needed, it can be done through the parallel input RCA connectors.

The MC series transformers are large size single C-core double coil transformers using a proprietary amorphous core material. Special winding techniques were developed in order to minimize inter-winding capacitances and maintain wide frequency response. They are optimized sonically to be as invisible as possible.

The transformers are shielded with mu-metal and are potted in 10mm thick soft iron nickel coated enclosures providing immunity to outside magnetic fields and a quiet and noise free performance.

The MC transformers were developed in conjunction with the VPS100 phono preamp. They can be used with most of the moving coil cartridges. For optimum performance the MC transformers can be used within a specific range of cartridge output levels.

MC5 may be used with cartridges from 0,8-1,2mv

MC10 may be used with cartridges from 0.4-0.6mv

MC16 may be used with cartridges from 0.3-0.4mv

MC20 may be used with cartridges from 0.2-0.3mv

FREQUENCY RESPONSE -3db
(source impedance<50ohm)8Hz-70khzINPUT IMPEDANCE
When terminated @ 47kohm2KohmGAIN14dbINDUCTANCE
(measured @ secondary)80H<<MAX. LEVEL @ 20Hz
(measured @ secondary)+20dbuDIMENSIONS100×120 (H x D) mmWEIGHT4 Kgr

FREQUENCY RESPONSE -3db
(source impedance<50ohm)8Hz-70khzINPUT IMPEDANCE
When terminated @ 47kohm500ohmGAIN20dbINDUCTANCE
(measured @ secondary)80H<<MAX. LEVEL @ 20Hz
(measured @ secondary)+20dbuDIMENSIONS100×120 (H x D) mmWEIGHT4 Kgr

FREQUENCY RESPONSE -3db
(source impedance<50ohm)8Hz-65khzINPUT IMPEDANCE
When terminated @ 47kohm200ohmGAIN24dbINDUCTANCE
(measured @ secondary)80H<<MAX. LEVEL @ 20Hz
(measured @ secondary)+20dbuDIMENSIONS100×120 (H x D) mmWEIGHT4 Kgr

FREQUENCY RESPONSE -3db
(source impedance<50ohm)8Hz-60khzINPUT IMPEDANCE
When terminated @ 47kohm140ohmGAIN26dbINDUCTANCE
(measured @ secondary)80H<<MAX. LEVEL @ 20Hz
(measured @ secondary)+20dbuDIMENSIONS100×120 (H x D) mmWEIGHT4 Kgr
