Reference Class Turntable Promising Outstanding Results

The SP-10R features a brand new, coreless direct drive motor which, in addition to the two-sided rotor drive system that was used in the SL-1200G, boasts stator coils on both sides of the rotor, for a more powerful and accurate sound.

The heavy platter features a three-layer structure consisting of brass, aluminum die-cast and deadening rubber, just like the platter of the SL-1200G. By optimizing the natural frequency of each layer, external vibrations are thoroughly suppressed resulting in a beautifully clear and crisp audio experience.

The SP-10R also features a new ultra-low-noise switching power supply, which, compared to a power supply unit using a transformer, is better at suppressing unwanted humming sounds and vibrations. The power supply unit is separate from the main turntable, preventing unwelcome noise from being transmitted to the turntable unit, for a sharper and clearer sound.

Introduction to the Market

Technics is working diligently towards an anticipated early summer launch for the SP-10R, and the new turntable will be interchangeable with systems using the SP10MK2** (released in 1975) and the SP-10MK3 (1981) – the two predecessors which have been highly evaluated by professional broadcasting stations and are still very much admired and used by many audiophiles world-wide. Technics also plans to market a complete turntable system based on SP-10R with a tonearm and other components.

About Panasonic

Panasonic Corporation is a worldwide leader in the development of diverse electronics technologies and solutions for customers in the consumer electronics, housing, automotive, and B2B businesses. Celebrating its 100th anniversary in 2018, the company has expanded globally and now operates 495 subsidiaries and 91 associated companies worldwide, recording consolidated net sales of 7.343 trillion yen for the year ended March 31, 2017. Committed to pursuing new value through innovation across divisional lines, the company uses its technologies to create a better life and a better world for its customers.

* S/N ratio of 92 dB and wow & flutter of 0.015%, as of August 30, 2017, according to a Technics survey.

**The SP-10MK2 was introduced in 1975 as a successor to the SP-10 turntable (released in 1970) that featured a direct-drive system for the first time in the world. It was not only favored by audiophiles around the world but also used by broadcasting stations in some 30 countries in professional applications.

Technics SP-10R High-End Direct Drive Turntable and Technics SL-1000R Direct Drive Turntable System continue the legacy of outstanding vinyl performance

• Ultimate precision: legendary direct drive engine redesigned with coreless double stator and twin rotor

• Stable rotation: heavyweight-class turntable platter utilizes inertial mass at its best to improve rotational stability

• Retrofit design: turntable and control unit are completely interchangeable with the previous SP-10MK2 and SP-10MK3 (For SP-10R)

Reaching new levels in near-flawless sound

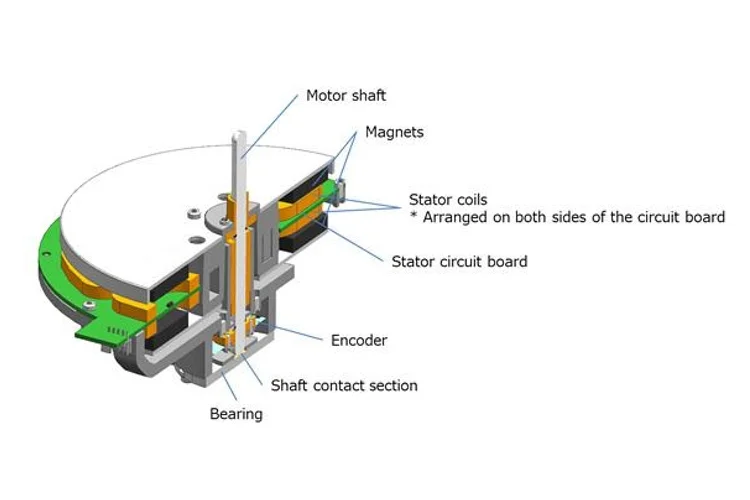

The SP10-R includes a double coil twin rotor-type coreless direct-drive motor with coils on both sides for 12-pole, 18-coil drive, and high enough torque to drive the heavyweight-class platter with ultimate sovereignty. The result is a stable rotation of 0.015% wow & flutter or less, which is considered to be the measurement limit.

The turntable also features an impressive turntable platter with a 10-mm-thick brass weight, enhanced with tungsten weights on the outer periphery. The brass weight is laminated onto the aluminum die-cast, giving the platter a total weight of approximately 7.9 kg and an inertial mass of approximately 1 ton･cm. A deadening rubber for eliminating unwanted vibration is attached to the rear surface to form a three-layer construction to achieve an even higher rigidity and provide excellent vibration-damping characteristics.

To achieve further noise reduction, the control unit is separated from the main unit and its switching power supply is equipped with unique technology that provides a voltage supply with minimal noise via a newly-developed ‘unwanted noise reduction circuit’. In addition, the communication between the main unit and the control unit are engineered to resist the effects of external noise whilst increasing reliability. These noise-reduction measures enable the SP-10R to achieve the World’s highest level S/N.

Achieving optimal performance with an exceptional tonearm and base

The Technics SL-1000R system features an S-type universal tonearm with a lightweight, high damping magnesium tonearm pipe. The gimbal suspension construction tonearm uses high-precision bearings, and highly-skilled Japanese craftsmen handle all assembly and adjustments to achieve a high initial-motion sensitivity to precisely trace the grooves cut into the records. To further ensure the production of highly-vivid sounds, OFC is used for internal wiring, so that the music signal relayed from the cartridge is not dampened and the musical energy cut into the record is not lost.

The tonearm base, to which the tonearm is mounted, is strongly integrated with the turntable. To safeguard exceptional tonearm performance, the tonearm bearings, turntable bearings and needle position remain constant – providing a structure in which the vibration caused by the rigidity of the turntable base materials has minimal effect.

Augmenting, not replacing a rich heritage of outstanding direct drive turntables and systems

The SP-10R has been developed to be completely interchangeable with previous SP-10 Series models, such as the SP-10MK2 and SP-10MK3. In order for users to continue using the turntable base and turntable of these previous systems, the shape and screw positions have been designed to allow for complete backward compatibility. The control unit is also the same shape and size as the SP-10MK2 power unit for trouble-free replacement.

Technics: The legacy continues

The great appeal of direct drive technology is its ability to eliminate degradation in sound quality caused by rotation fluctuation and minute vibrations between the motor and transmission mechanism. The SP-10R and the SL-1000R are part of a long and successful line of reference case turntable technologies. Technics released the SP-10 as the World’s first Direct Drive Turntable in 1970 and its superb performance and reliability quickly made the SP series both the go-to turntable for broadcast stations and the holy grail of audiophiles worldwide. Committed to creating an emotionally-engaging experience and delivering the power of music to all, Technics has been at the heart of music performance for decades. From the emergence to success of hip hop, enabling the fast rise of celebrity DJs, and allowing audiophiles to hear music exactly as the creators wished, it has been and shall remain the brand that leaders in their field turn to for exceptional performance and reliability.

Technics SL1000R Specifications

Drive Method - Direct Drive

Motor - Brushless DC motor

Turntable Speeds - 33 1/3, 45, 78 rpm

Adjust Range - ±16 %

Starting Torque - 0.39 N・m / 4.0 kg･cm (3.47 lb-in)

Wow And Flutter - 0.015 % W.R.M.S.

Turntable Platter - Brass and aluminum die-cast combined

Diameter : 323 mm (12-23/32")

Weight : Approx. 7.9 kg (17.5 lbs)　(including turntable mat)

Tonearm Section

Type - Universal Static Balance

Effective Length - From the tonearm pivot to the stylus : 254mm (10") From the tonearm pivot to the spindle : 239mm (9-13/32")

Overhang - 15 mm (19/32 inch)

Tracking Error Angle - Within 1° 48' (at the outer groove of 30 cm (12") record), Within 0° 30' (at the inner groove of 30 cm (12") record)

Offset Angle - 21°

Arm Height Adjustment Range - 0 - 15 mm

Stylus Pressure Adjustment Range - 0 - 4 g (Direct Reading)

Applicable Cartridge Weight Range (including Headshell) - 15.9 - 19.7 g (without auxiliary weight)

18.8 - 23.6 g (with small auxiliary weight)

22.5 - 26.3 g (with middle auxiliary weight)

26.0 - 31.0 g (with large auxiliary weight)

Terminals

Audio Output

PHONO (Din Jack) x 1 *Straight Type Cable Only

General

Power Supply - AC 110 - 240 V, 50 / 60 Hz

Power Consumption - 10 W, Approx. 0.05 W (Standby)

Dimensions (W x H x D) Main Unit - 531 x 188 x 399 mm (20-29/32 × 7-13/32 × 15-23/32 inch) Control Unit - 110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch)

Weight - Main Unit Approx. 40.2 kg (88.7 lbs), Control Unit Approx. 2.1 kg (4.7 lbs)

Operating Temperature Range - 0° to +40° (32°F to +104°F)

Operating Humidity Range - 35 % to 80 % RH (no condensation)

Accessories - Turntable, Turntable mat, EP record adaptor, Balance weight, Auxiliary weight(Small)(Middle)(Large), Overhang gauge, Screw set for turntable, Detachable handle, Hex wrench, Insulator attachment, Dust cover, AC main leads, Owner's manual.

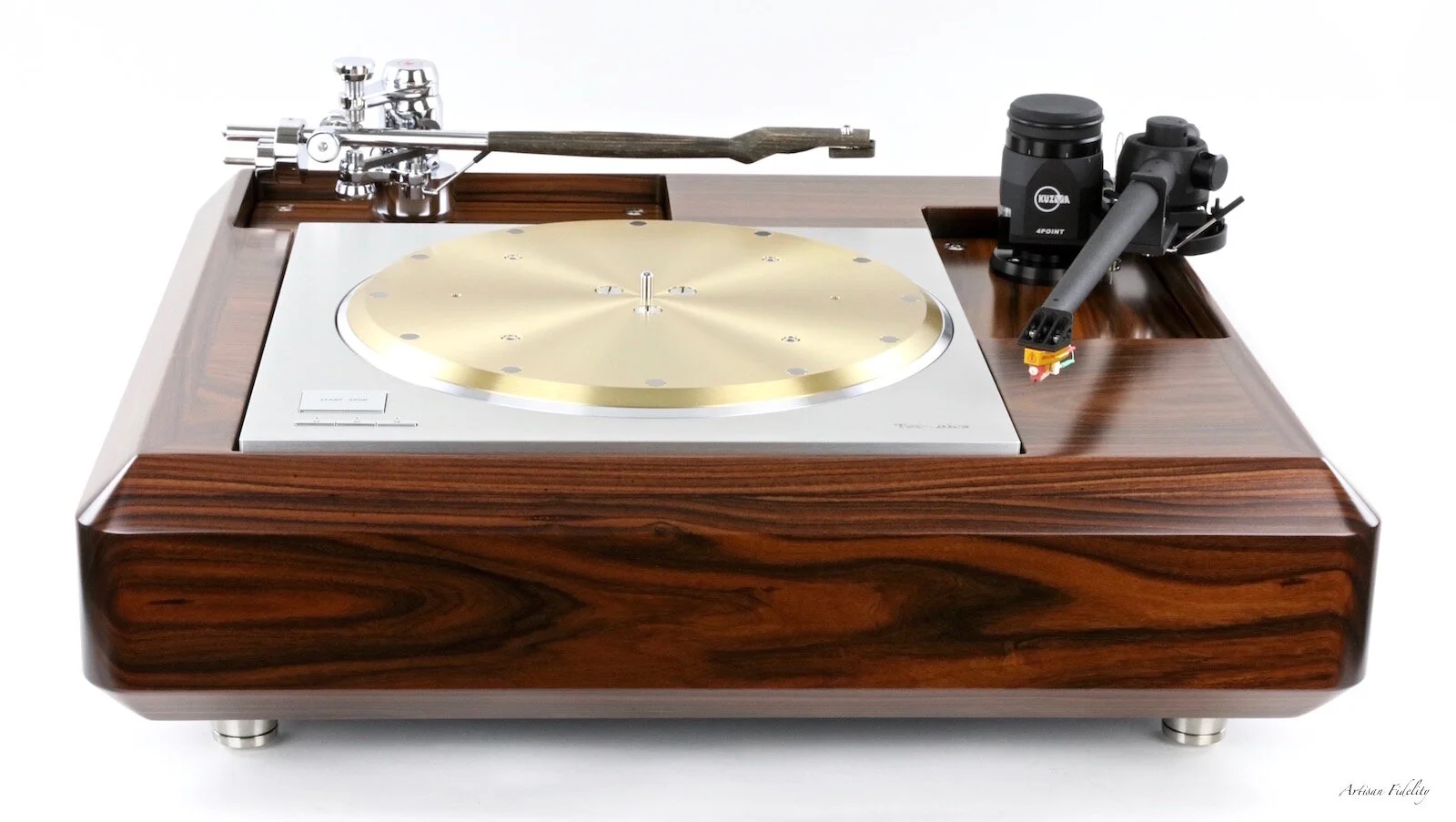

Technics SP10R Panzerholz Plinth by Artisan Fidelity

Specifications:

Compatibility: Backwards compatible for legacy Matsushita Technics Sp10Mk.2/A, Mk.3 turntable models.

Tonearm compatibility - Accommodates 9”-12” effective length tonearms.

Design - Constrained Layer Damped, Panzerholz Composite Resin impregnated, Tone wood and Aircraft Aluminum based core with active “Quiet Core” bearing drain module.

Dimensions (with instrument) - W 57cm x D 51cm x H 17cm (Single tonearm compatible plinth) and W 61cm x D 57cm x H 17cm (Dual tonearm compatible plinth).

Weight Range - ~ 70lbs. - ~ 88lbs. net / 90lbs. - ~ 108lbs. with instrument.
